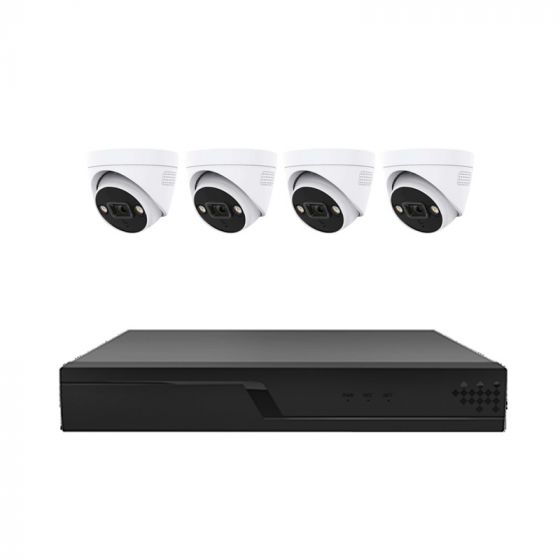

JFTECH 8-channel PoE NVR + 5MP PoE Dome IP Camera*4
JFTECH 8-channel PoE NVR + 5MP PoE Dome IP Camera*4
Ship in 1-5 working days
Please wait for the notification
Same-day Shipping For Payments Made Before 4 PM, Courier Post Overnight Delivery !!!
WHOLESALE WELCOME TO CONTACT US BEFORE YOUR PURCHASE!
JFTECH
1*SATA NVR AY Series NVR8908AY-SKL-V2
with HM Series 5MP PoE Dual-light Dome IP Camera*4
Introduction
NVR8908AY-SKL-V2 is an 8-channel POE 1*disk network HD hard disk recorder developed by our company. It supports a variety of intelligent functions such as human, face, car, and so on, Both as NVR for local independent work, but also networking to form a security system. Widely used in finance, telecommunications, transportation, electricity, education, water conservancy and other areas of security prevention.
For camera specifications, please refer to this link.
|
processor |
Mstar |
|
system |
Embedded Linux |
|
Video input |
8*POE IPC+2*IPC |
|
Playback |
4K(1)/ 5M(1+1)/ 4M(2)/ 3M(2+2)/1080P(4+1) |
|
Decode |
H.265AI/H.265+(compatible H.265/H.264) |
|
Compression |
G.711a |
|
Intercom |
support |
|
Record mode |
Manual>Alarm>Motiondetection>Timing |
|
Inquire mode |
Inquire by Time/Calendar/Event/Channel/Face |
|
Storage mode |
HDD Storage, Network Storage,CLoud Storage |
|
Backup |
Network, USB, SATA |
|
HDMI output |
1*HDMI (MAX:4K) |
|
VGA output |
1*VGA (MAX:1080P) |
|
Ethernet port |
1*RJ45 1*10/100Mbps Ethernet port |
|
POE ports |
8*POE |
|
Audio I/O |
1/1(3.5mm) |
|
Alarm I/O |
0/0 |
|
USB Port |
2*USB2.0 ports |
|
HDD |
1*SATA interface (Up to 14TB) |
|
Temperature |
0 ℃ - + 55 ℃ |
|
Humidity |
10% -90% RH |
|
Power supply |
48V/1.5A |
|
Consumption |
<10W(Without HDD) |
|
Weight |
Around 0.7KG |
|
Dimension |
255(L)* 215mm(W)*43mm(H) |
Toshiba DT02-V 2TB Hard Disk Drive
Storage & Interface
Performance
Technical Info
Physical Description
| Warranty | 3 Years |
|---|---|
| Condition | New |
