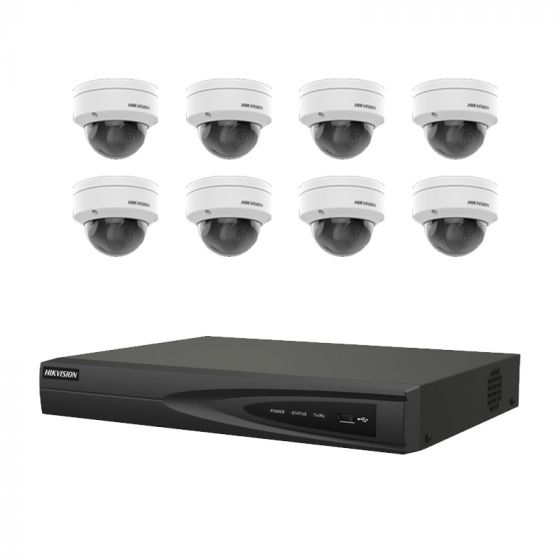

8-ch 1U 4K NVR DS-7608NI-K2/8P with DS-2CD1143G0-I 2.8mm*8

• DS-7608NI-Q1/8P

  8-ch 1U 8 PoE 4K NVR

  • Up to 8-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
  • Up to 80 Mbps incoming bandwidth

  	Specification
  Motion Detection 2.0
  	Human/Vehicle Analysis	4-ch
  Video and Audio	IP Video Input	8-ch
  	HDMI Output	1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,
  	VGA Output	1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  	Video Output Mode	HDMI/VGA simultaneous output
  	Incoming Bandwidth	80 Mbps
  	Outgoing Bandwidth	80 Mbps
  	Audio Output	1-ch, RCA (Linear, 1 KΩ)
  	Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 k Ω)
  Recording	Stream Type	Video, Video & Audio
  	Audio Compression	G.711ulaw/G.711alaw/G.722/G.726
  Decoding	Decoding Format	H.265+,H.265,H.264+,H.264
  	Decoding Capability	1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
  	Synchronous playback	8-ch
  	Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  Network	Remote Connection	32
  	Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  	Network Interface	1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  POE	Interface	8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  	Power	≤ 75 W
  Auxiliary Interface	Alarm In/Out	N/A (4/1 is optional)
  	SATA	1 SATA interface
  	Capacity	Up to 8 TB capacity for each disk
  	USB Interface	2 × USB 2.0
  General	Power Supply	48 VDC, 1.88 A
  	Consumption	≤ 10 W (without HDD and PoE off)
  	Working Temperature	-10 to +55º C (+14 to +131º F)
  	Working Humidity	10% to 90%
  	Dimension (W × D × H)	320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
  	Weight	≤ 1 kg (without HDD, 2.2 lb.)
  Certification	FCC	Part 15 Subpart B, ANSI C63.4-2014
  	CE	EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

For more information about Hikvision DS-2CD1143G0-I 2.8mm, please click this link.
