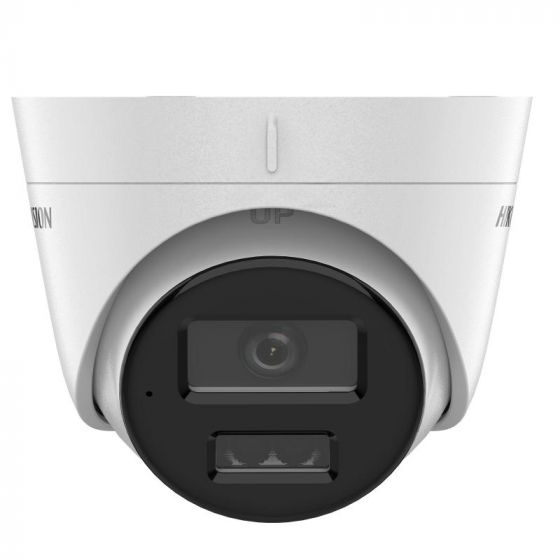

HIKVISION 4 MP Smart Hybrid Light Fixed Turret Network Camera DS-2CD1343G2-LIU(2.8mm)
HIKVISION 4 MP Smart Hybrid Light Fixed Turret Network Camera DS-2CD1343G2-LIU(2.8mm)
Ship in 2 working days
Please wait for the notification
4 MP Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
Specification
-
Camera
- Image Sensor 1/3" Progressive Scan CMOS
- Max. Resolution 2560 × 1440
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
-
Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.6
-
DORI
- DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
-
Illuminator
- Supplement Light Type IR,White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
-
Video
- Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Region Of Interest (ROI) 1 fixed region for main stream
-
Audio
- Audio Type Mono sound
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
-
Network
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Clienti VMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
-
- Wide Dynamic Range (WDR) 120 dB
- SNR ≥ 52 dB
- Day/Night Switch Day,Night,Auto,Schedule
- Image Enhancement BLC,HLC,3D DNR
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask 4 programmable polygon privacy masks
-
Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In Microphone Yes
- Reset Key -F: Yes
-
Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
-
General
- Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
- Material Metal & Plastic
- Dimension Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
- Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight Approx. 340 g (0.7 lb.)
- With Package Weight Approx. 560 g (1.2 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Ukrainian
- General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
-
Approval
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
Condition | New |
---|
